Kaishan Surface Drilling Rigs/Compact Crawler DTH Drill Rig with Integrated Air Compressor Series
ZT11

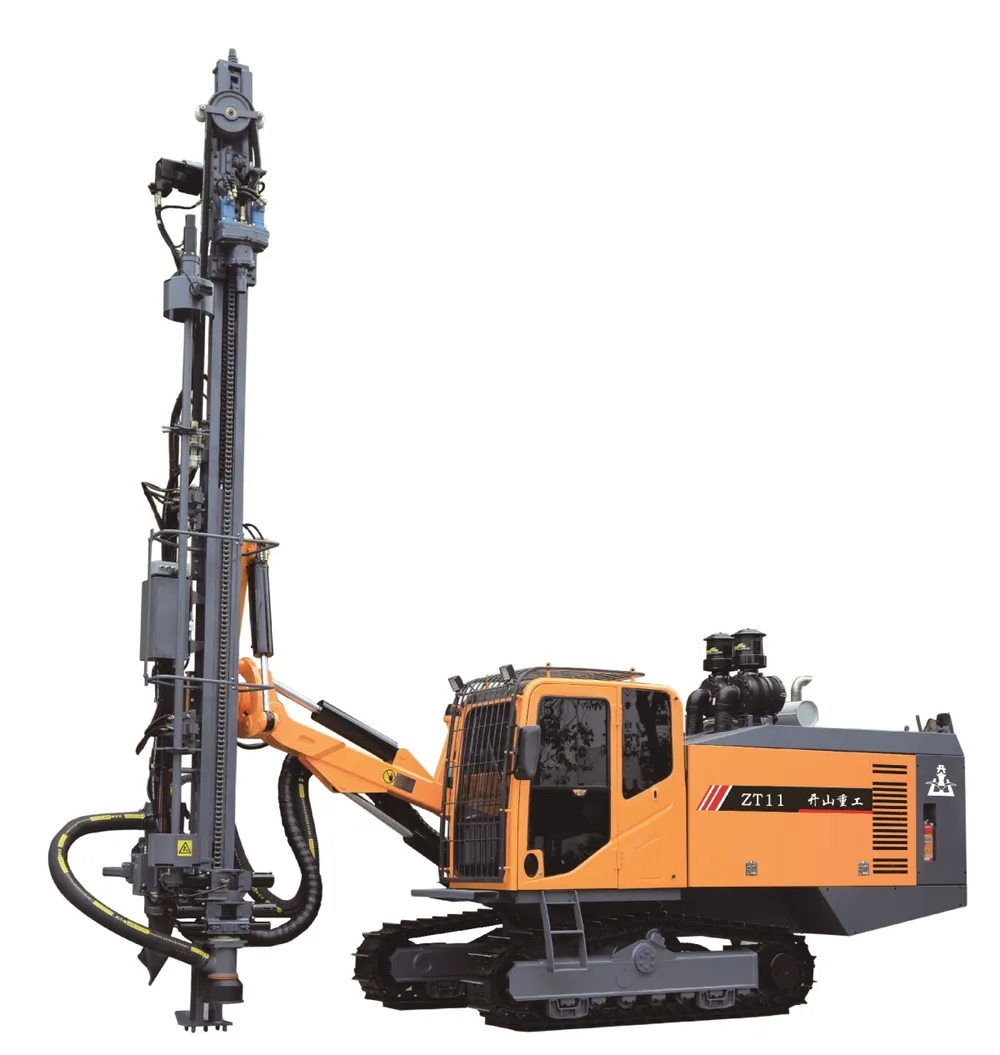

The ZT11 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes, and is mainly used for open-pit mines and stonework blast holes and pre-splitting holes. It is driven by a Yuchai non-road diesel engine, and the screw compression system and hydraulic transmission system are simultaneously driven by the back-end flywheel and PTO port output. The drill rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioning cab, with optional drilling-angle and depth indication function. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Model of drill rig
ZT11
Dimensions & weight — Weight
13000 kg
Dimensions & weight — Transport dimensions (L × W × H)
9900 x 2300 x 3200/3500 mm
Drilling capability — Rock hardness
f = 6-20
Overview
The ZT11 integrated surface DTH drilling rig can drill vertical, inclined and horizontal holes, and is mainly used for open-pit mines and stonework blast holes and pre-splitting holes. It is driven by a Yuchai non-road diesel engine, and the screw compression system and hydraulic transmission system are simultaneously driven by the back-end flywheel and PTO port output. The drill rig is equipped with an automatic rod handling system, a drilling rod floating slide module, a drill pipe lubrication module, a drill pipe sticking prevention system, a hydraulic dry dust collection system and an air-conditioning cab, with optional drilling-angle and depth indication function. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety.
Key highlights
- ✓Single diesel engine drives both the on-board screw compressor (rear flywheel output) and the hydraulic transmission (PTO output).
- ✓Automatic rod handling system, drilling rod floating slide module and drill pipe lubrication module.
- ✓Drill pipe sticking prevention system.
- ✓Hydraulic dry dust collection system.
- ✓Air-conditioned cab with optional drilling-angle and depth indication.
- ✓Can drill vertical, inclined and horizontal holes.
- ✓Excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation and travelling safety.
Applications: Open-pit mines and stonework, for blast holes and pre-splitting holes. · Vertical, inclined and horizontal holes of 90-130 mm at an economical drilling depth of 32 m. · Integrated rig: on-board two-stage screw compressor supplies 18 m³/min at 22 bar, so no separate air compressor is needed.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model of drill rig | ZT11 |
Dimensions & weight
| Weight | 13000 kg |
| Transport dimensions (L × W × H) | 9900 x 2300 x 3200/3500 mm |
Drilling capability
| Rock hardness | f = 6-20 |
| Drilling diameter | 90-130 mm |
| Ground clearance | 355 mm |
| Leveling angle of track | ±10° |
| Travelling speed | 0-3 km/h |
| Climbing capacity | 25° |
| Traction | 80 kN |
| Rotary torque (max) | 2500 N·m |
| Rotation speed | 0-173 rpm |
| Swing angle of drill boom | left 18°, right 46° |
| Swing angle of carriage | left 9°, right 96° |
| Tilt angle of beam | 148° |
| Compensation stroke | 1500 mm |
| Rotation head stroke | 4510 mm |
| Maximum propelling force | 37 kN |
| Method of propulsion | Motor + roller chain |
| Depth of economical drilling | 32 m |
Other specifications
| Number of rods | 7+1 |
| Specifications of drilling rod | Φ64/Φ76 x 4000 mm |
| DTH hammer | 3 in, 4 in |
| Engine | Yuchai YCA08320-T300 |
| Rated power | 235 kW |
| Rated revolving speed | 2200 r/min |
| Screw compressor | Two-stage compression 18 m³/min / 22 bar |
| Travelling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V DC |
| Safe cab | ROPS & FOPS |
| Indoor noise | <85 dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard cooling and heating |
| Entertainment | Radio |
