Kaishan Air Compressors/Deep Well Two-stage Air Compressor Series
KSZJ-29/23-32/17

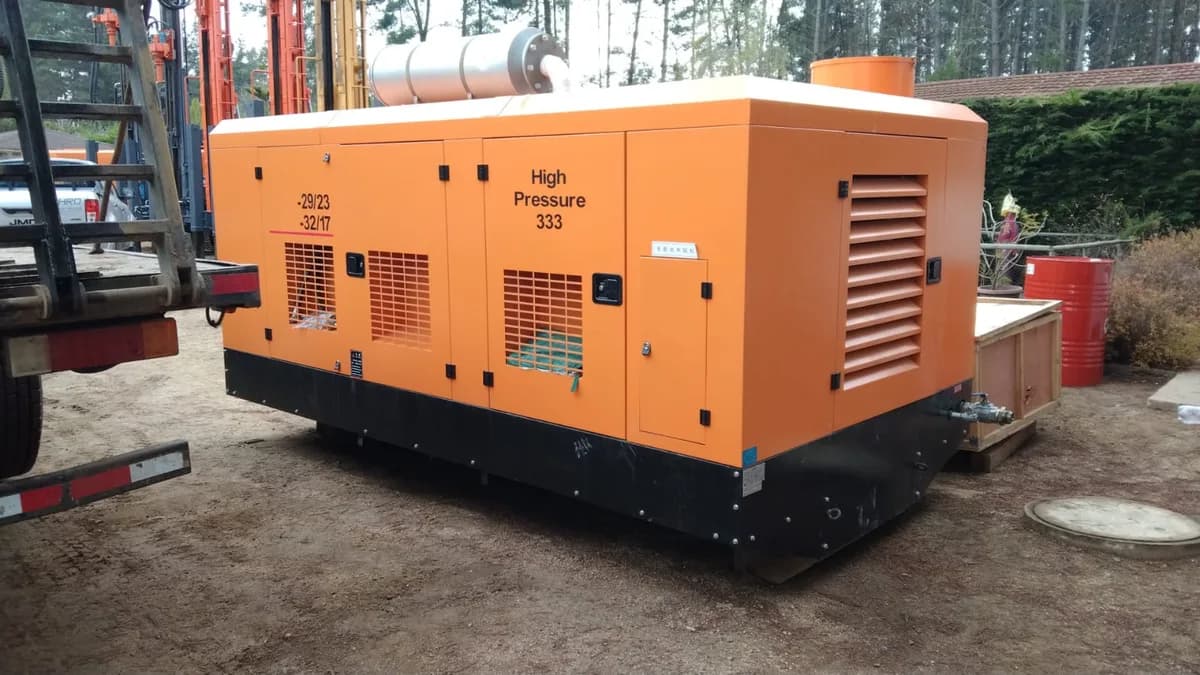

KSZJ-29/23-32/17 is a Deep Well Diesel Air Compressor. Published specifications include discharge pressure 1.7-2.3 MPa; air delivery 29-32 m³/min; engine power Yuchai 400HP; weight 4050 kg; dimensions 3500x1950x2030 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Working pressure
1.7-2.3 MPa
Air delivery
29-32 m³/min
Engine
Yuchai 400 HP
Weight
4050 kg
Overview
KSZJ-29/23-32/17 is a Deep Well Diesel Air Compressor. Published specifications include discharge pressure 1.7-2.3 MPa; air delivery 29-32 m³/min; engine power Yuchai 400HP; weight 4050 kg; dimensions 3500x1950x2030 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Performance & capacity
| Discharge pressure (MPa) | 1.7-2.3 |
| Air delivery (m³/min) | 29-32 |
Engine & drive
| Engine power | Yuchai 400 HP |
Dimensions & weight
| Weight (kg) | 4050 |
| Dimensions (mm) | 3500x1950x2030 |
Other specifications
| Air outlet | G2x1,G³/4x1 |
Applications
- Water well drilling
- Deep well drilling
- Geothermal drilling
Recommended packages
What this unit powers
Built for water well rigs: 1.7-2.3 MPa matches KS180-KS450 crawler air demand. Dual-work-condition switching lets one unit cover different well depths.
Pressure & flow matching rules
Pair each rig class: KS180/KS260 → KSZJ-18/17A class; KS300B-KS450 → KSZJ-29/23 class. Confirm hammer pressure rating against the unit.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KSZJ-29/23-32/17?
Water well drilling, Deep well drilling, Geothermal drilling.
What drilling equipment does the KSZJ-29/23-32/17 power?
This compressor supplies drilling air to DTH rigs and hammers — match the discharge pressure to the hammer rating and the air delivery to the hammer consumption plus 10-15% margin. Tell us your rig model and hammer size and we will confirm the pairing.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
