Kaishan Air Compressors/Deep Well Two-stage Air Compressor Series
KSZJ-29/23G

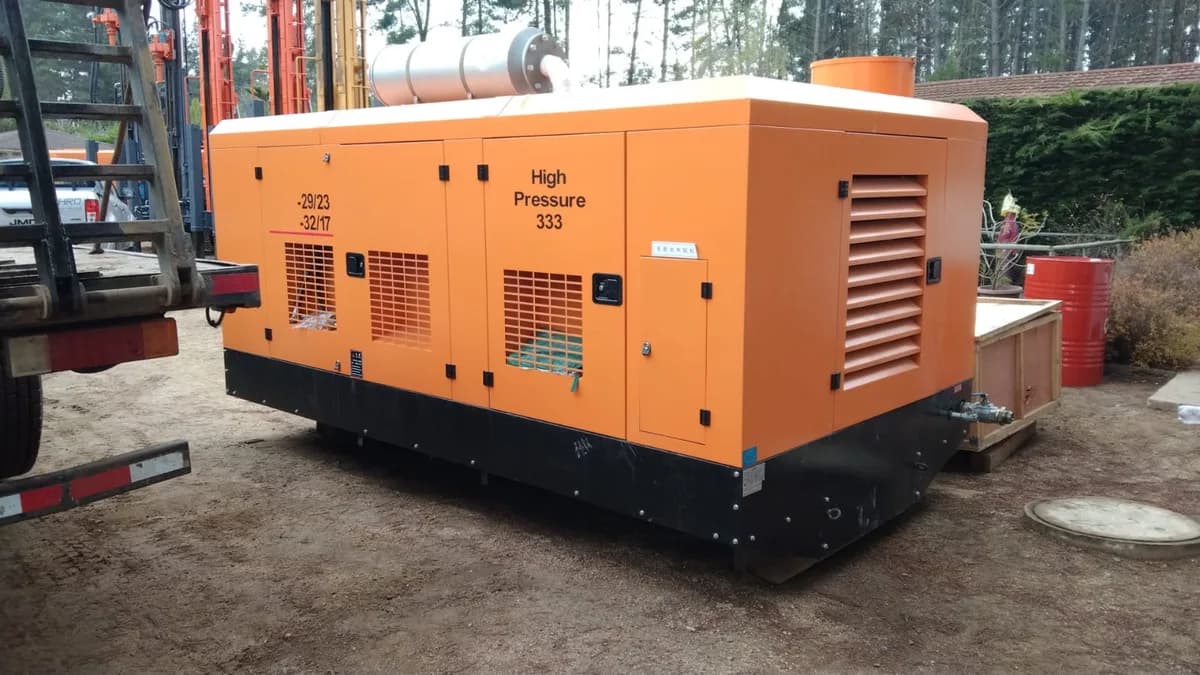

KSZJ-29/23G is a diesel-driven screw air compressor. Its brochure specification lists discharge pressure of 2.3 MPa, air delivery of 29 m³/min, a Yuchai 400 HP engine, and weight of 4050 kg. The water-well compressor series combines electronic operating supervision, cooling and multi-stage filtration for demanding drilling-site conditions. Remote network monitoring is optional.
Model
KSZJ-29/23G
Tooling & air — Discharge pressure
2.3 MPa
Tooling & air — Air delivery
29 m³/min
Tooling & air — Supporting engine
Yuchai 400 HP
Overview
KSZJ-29/23G is a diesel-driven screw air compressor. Its brochure specification lists discharge pressure of 2.3 MPa, air delivery of 29 m³/min, a Yuchai 400 HP engine, and weight of 4050 kg. The water-well compressor series combines electronic operating supervision, cooling and multi-stage filtration for demanding drilling-site conditions. Remote network monitoring is optional.
Key highlights
- ✓SKY screw air end with a proprietary rotor profile and heavy-duty bearing design, as described for the water-well compressor series.
- ✓Electronic operating display covers engine speed, air pressure, engine oil pressure, discharge temperature, coolant temperature and fuel level.
- ✓Self-diagnosis, fault alarms and protective shutdown support operating supervision.
- ✓Separate oil, water and air coolers with a large-diameter fan provide thermal management for varying ambient conditions.
- ✓Multi-stage intake filtration combines centrifugal pre-cleaning, a main filter and a safety element for dusty operating environments.
- ✓Oil-air separation and lubricating-oil filtration protect the compressor air circuit and moving components; fuel filtration protects the engine injection system.
- ✓Remote network monitoring is available as an option; it is not assumed to be fitted to every machine.
Applications: Compressed-air supply for water-well drilling, matched to the required drilling air pressure and delivery.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model | KSZJ-29/23G |
Tooling & air
| Discharge pressure | 2.3 MPa |
| Air delivery | 29 m³/min |
| Supporting engine | Yuchai 400 HP |
| Discharge port | G2 x 1, G¾ x 1 |
Dimensions & weight
| Weight | 4050 kg |
| Overall dimensions (L × W × H) | 3500 x 1950 x 2030 mm |
Applications
- Water well drilling
- Deep well drilling
- Geothermal drilling
Recommended packages
What this unit powers
Built for water well rigs: 1.7-2.3 MPa matches KS180-KS450 crawler air demand. Dual-work-condition switching lets one unit cover different well depths.
Pressure & flow matching rules
Pair each rig class: KS180/KS260 → KSZJ-18/17A class; KS300B-KS450 → KSZJ-29/23 class. Confirm hammer pressure rating against the unit.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KSZJ-29/23G?
Water well drilling, Deep well drilling, Geothermal drilling.
What drilling equipment does the KSZJ-29/23G power?
This compressor supplies drilling air to DTH rigs and hammers — match the discharge pressure to the hammer rating and the air delivery to the hammer consumption plus 10-15% margin. Tell us your rig model and hammer size and we will confirm the pairing.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
