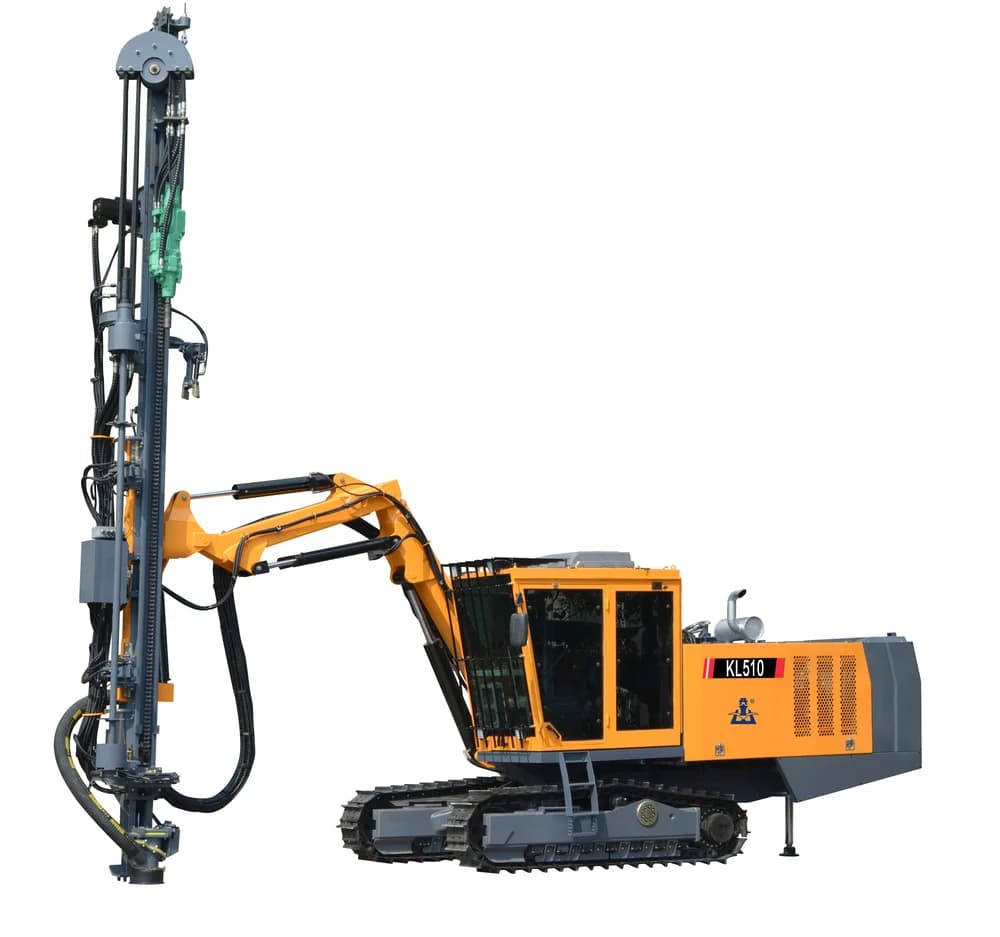

KL510
KL510 is a Surface Top Hammer Drilling Rig. Published specifications include rotation pressure 210 bar; hole diameter 64-115 mm; weight 16500 kg; dimensions 10500×2450×3200 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Model
KL510
Tooling & air — Propelling force
19 kN
Tooling & air — Rotation pressure
210 bar
Tooling & air — Rotation speed
150 rpm
Overview
KL510 is a Surface Top Hammer Drilling Rig. Published specifications include rotation pressure 210 bar; hole diameter 64-115 mm; weight 16500 kg; dimensions 10500×2450×3200 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Specifications
Request the current specification sheet for this model using the button above.
Other specifications
| Model | KL510 |
Tooling & air
| Propelling force | 19 kN |
| Rotation pressure | 210 bar |
| Rotation speed | 150 rpm |
Other specifications
| Drilling depth | 25 m |
| Hole diameter | 64-115 mm |
| Air compressor flow | 8.5 m³/min |
| Air compressor model | Yunnan Kaishan screw compressor |
| Air compressor pressure | 10 bar |
| Engine model | Cummins QSC8.3-C240-30 |
| Engine power | 179 kW |
| Engine speed | 2200 rpm |
| Impact power | 24 kW |
Performance & mobility
| Gradeability | 30° |
| Tramming speed | 0-3.5 km/h |
Dimensions & weight
| Overall dimensions (L × W × H) | 10500×2450×3200 mm |
| Fuel tank capacity | 340 L |
| Ground clearance | 430 mm |
| Hydraulic oil capacity | 250 L |
| Weight | 16500 kg |
Other specifications
| Drill rod diameter | 45/38mm |
| Drill rod length | 3660 mm |
| Rock drill model | HC95LQ |
| Rock drill stroke | 4150 mm |
| Dust collector | 20m³/min @ 1000mmH2O |
| Cab | ROPS/FOPS, A/C, radio/MP3 |
Applications
- Road cuts
- Foundation engineering
- Open-pit mining
- Pipeline trenches
Recommended packages
Air compressor match
Fully self-contained: the rig carries an onboard Kaishan screw compressor (KL511: 9.7 m³/min @ 10 bar), so production blasting needs no separate air package.
DTH hammer & bits
Top hammer rig — uses hydraulic top hammer drills (HC95LJQ on KL510, HC150/HC160 on KL511) with threaded drill strings, not DTH hammers. Confirm rod and bit threads with our team.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KL510?
Road cuts, Foundation engineering, Open-pit mining, Pipeline trenches.
Which air compressor pairs with the KL510?
Fully self-contained: the rig carries an onboard Kaishan screw compressor (KL511: 9.7 m³/min @ 10 bar), so production blasting needs no separate air package.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
