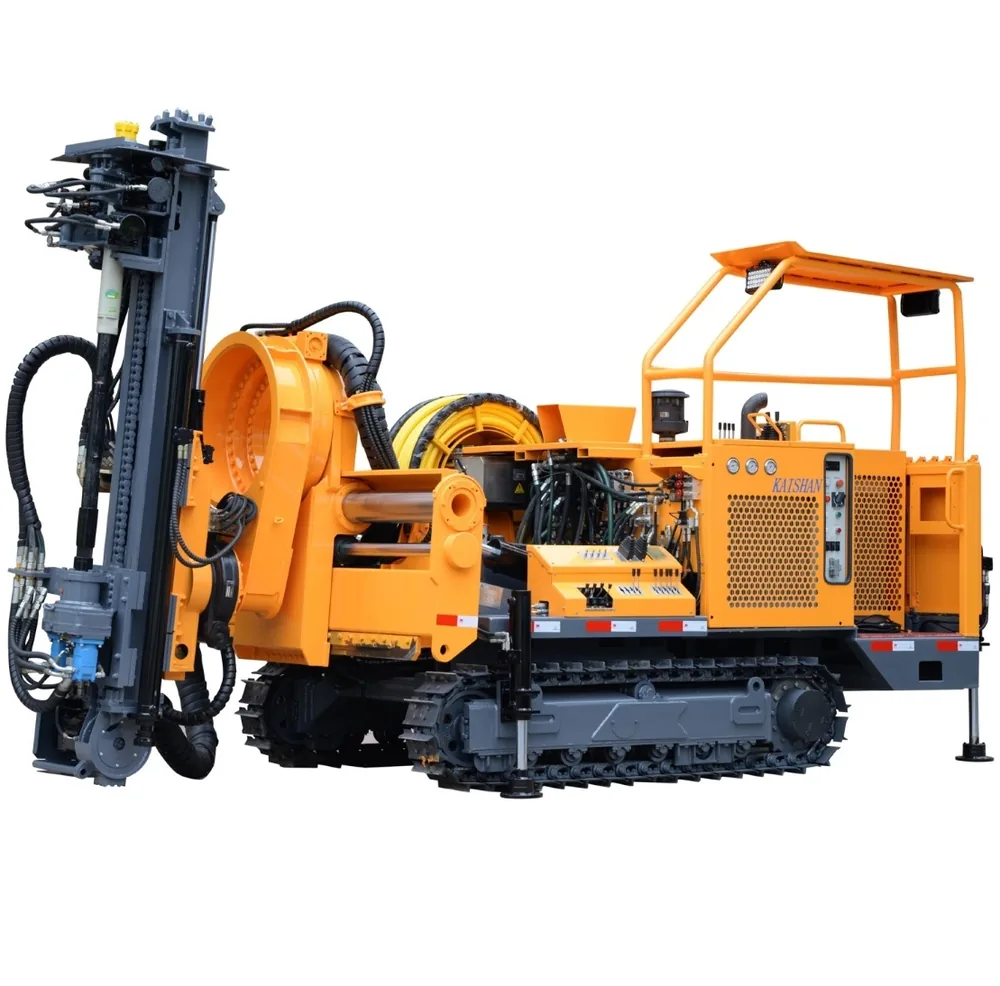

KSQ31
KSQ31 is a downhole mining drilling rig with independent diesel and electric power systems for medium and deep-hole mining and anchoring operations in underground roadways.
Dimensions & weight — Overall dimensions (L × W × H)
5525 × 2375 × 2975 mm
Dimensions & weight — Weight
10000 kg
Performance & mobility — Climbing capacity
20°
Performance & mobility — Tramming speed
1.5 / 3 km/h, double speed
Overview
KSQ31 is a downhole mining drilling rig with independent diesel and electric power systems for medium and deep-hole mining and anchoring operations in underground roadways.
Key highlights
- ✓Independent diesel and electric power systems can be operated separately for flexible underground use.
- ✓The downhole drilling system supports large-diameter holes and economical drilling depth up to 50 m.
- ✓The propulsion beam, luffing mechanism and rotary unit provide controlled positioning for parallel-hole drilling.
- ✓Wet dust catching, a protective roof and cable remote control support underground operation.
Applications: Medium and deep-hole mining and anchoring operations in underground roadways. · Roadways with a width of 3.2-8 m and height of 3.2-5 m, subject to final configuration confirmation.
Specifications
Request the current specification sheet for this model using the button above.
Dimensions & weight
| Overall dimensions (L × W × H) | 5525 × 2375 × 2975 mm |
| Weight | 10000 kg |
Performance & mobility
| Climbing capacity | 20° |
| Tramming speed | 1.5 / 3 km/h, double speed |
| Ground clearance | 355 mm |
Other specifications
| Diesel engine | YCF3675-T480; 55.8 kW |
| Electric motor | Y250M-4; 55 kW |
| Working voltage | 380 V |
| Starting method | Star-triangle |
| Length of reel cable | 80 m |
Drilling capability
| Rock hardness | f=6-20 |
| Drilling diameter | Φ90-125 mm |
| Economical drilling depth | 50 m |
| Drill rod diameter | Φ76 mm |
| Drill rod length | 1.2 m (open-hole drill rod 0.8 m) |
| Number of rods | 24+1 |
Other specifications
| Rotary speed | 0-120 rpm |
| Rotary torque | 1900 N·m |
| Propulsion beam length | 3155 mm |
| Feed stroke | 1355 mm |
| Lifting force | 25 kN |
| Lifting angle of drill boom | Front 20° / back 65° |
| Swing angle of drill boom | 360° |
| Ring angle | 360° |
| Parallel borehole range | 3052 mm |
| Air pressure | 10-25 bar |
| Air consumption | 10-22 m³/min |
| Dust-catching method | Wet |
| Operational mode | Hydraulic pilot + cable remote control |
| Protection roof | Resistant to rolling and rock-fall |
| Roadway working range | Width 3.2-8 m; height 3.2-5 m; subject to final configuration confirmation |
Applications
- Underground mining
- Downhole hammer drilling
- Water & ventilation holes
