Drilling Tools/DTH Hammer Series

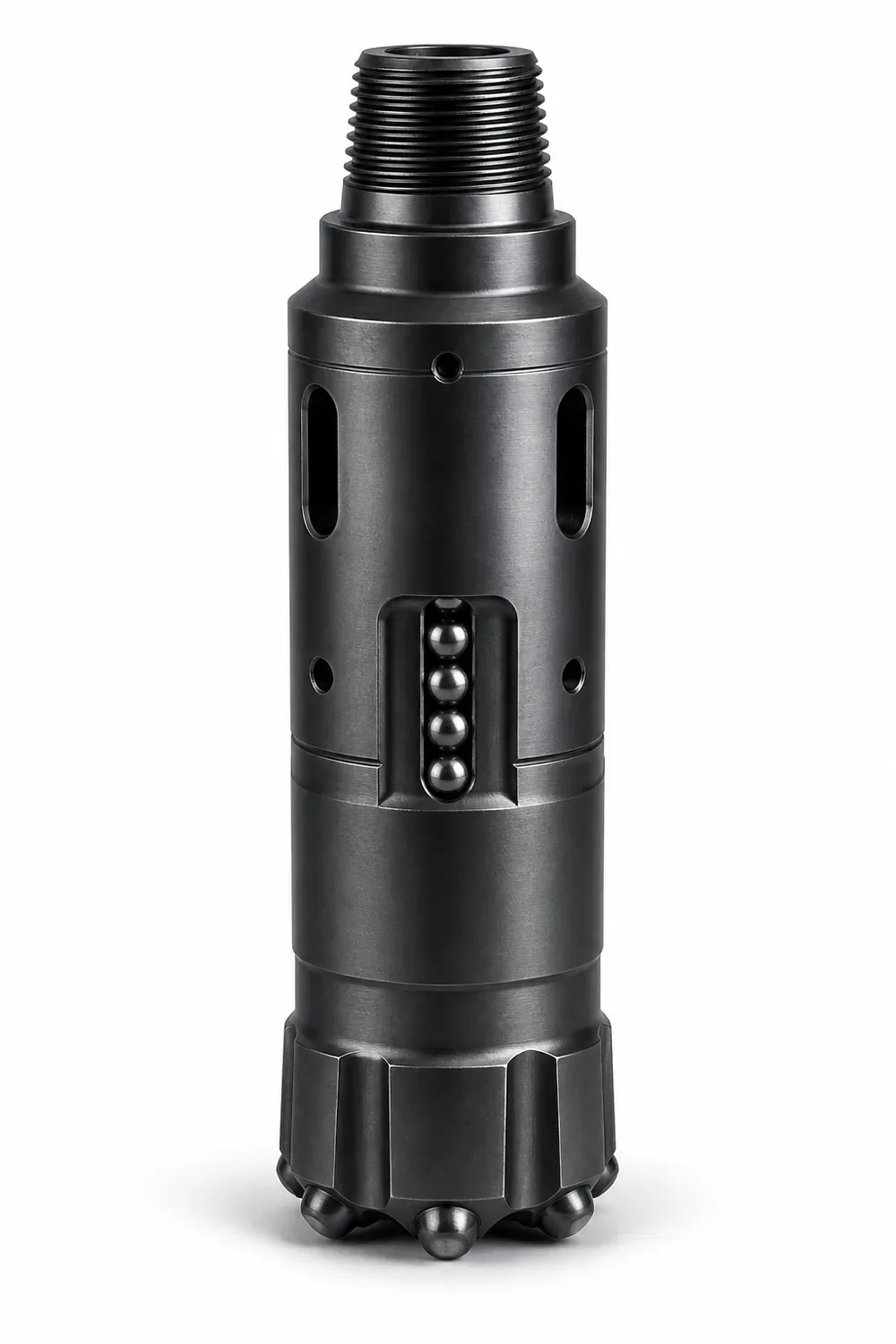

K50
K50 High Air Pressure DTH Hammer is a core component engineered for efficient down-the-hole drilling. Manufactured with high-quality alloy steel and advanced heat treatment processes, featuring high strength, long service life, and high impact energy. Compatible with K50 series DTH drilling rigs (e.g., KG/KD series) or equivalent drilling rigs, suitable for blast hole drilling in mining, hydropower, quarries, and construction foundation projects.
Hole range
135-165 mm
Length
923.5 mm
Weight
63 kg
Overview
K50 High Air Pressure DTH Hammer is a core component engineered for efficient down-the-hole drilling. Manufactured with high-quality alloy steel and advanced heat treatment processes, featuring high strength, long service life, and high impact energy. Compatible with K50 series DTH drilling rigs (e.g., KG/KD series) or equivalent drilling rigs, suitable for blast hole drilling in mining, hydropower, quarries, and construction foundation projects.
Supplied by KaishanDrilling as part of a complete drilling solution, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Drilling capability
| Hole range (mm) | 135-165 |
Dimensions & weight
| Length (mm) | 923.5 |
| Weight (kg) | 63 |
Applications
- Mining
- Quarrying
- Water well drilling
Recommended packages
Air compressor match
Hammers are the air consumer — the compressor's discharge pressure must equal or exceed the hammer rating and deliver rated consumption plus 10-15%.
DTH hammer & bits
This is the hammer itself — order matching button bits (K3 bit → 90-105 mm holes) and keep shank adapters and coupling sleeves in stock.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the K50?
Mining, Quarrying, Water well drilling.
Which air compressor pairs with the K50?
Hammers are the air consumer — the compressor's discharge pressure must equal or exceed the hammer rating and deliver rated consumption plus 10-15%.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
