Kaishan Air Compressors/Single-stage Diesel Mobile Air Compressor Series

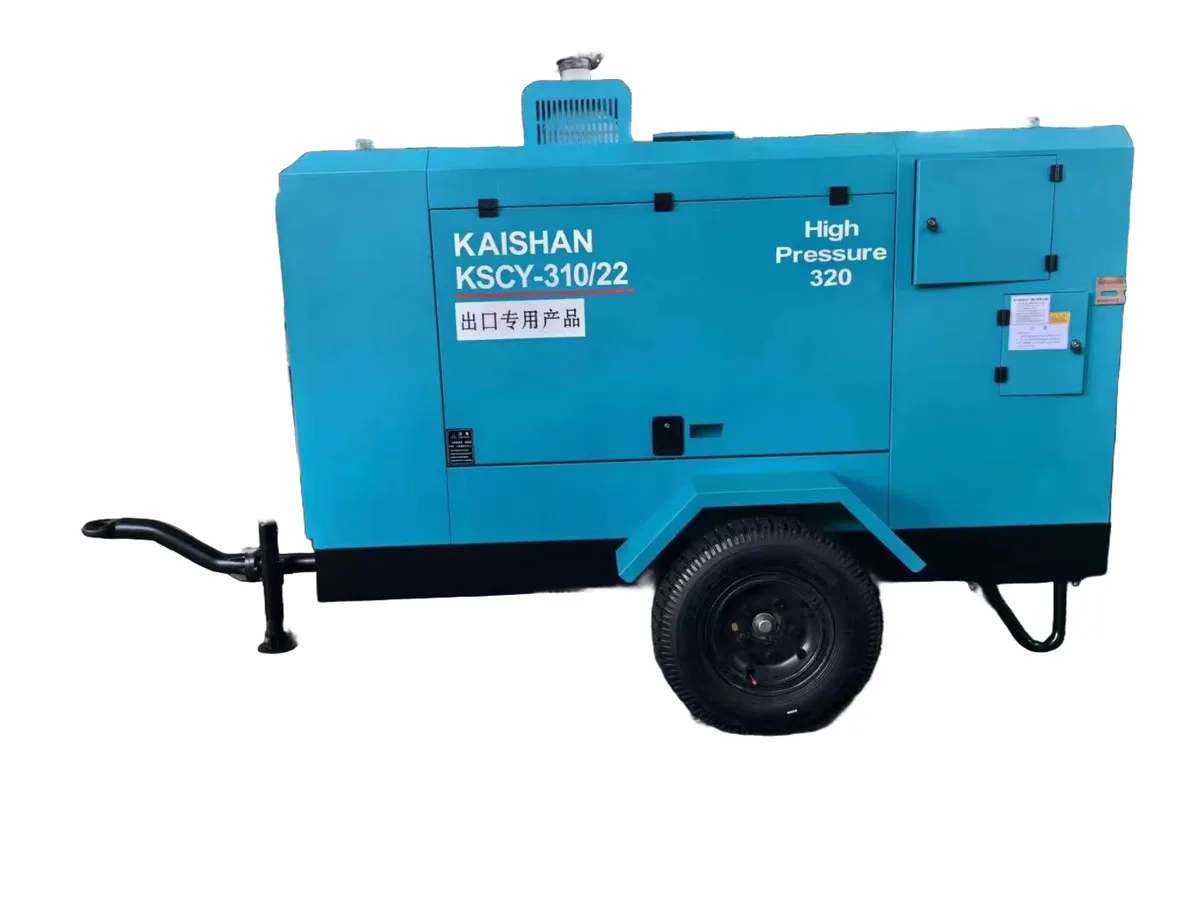

KSCY-310/22X
KSCY-310/22X is a KSCY Diesel Compressor Unit. Published specifications include discharge pressure 2.2 MPa; air delivery 21 m³/min; diesel engine Xichai310HP; outlet G2×1,G3/4x1; weight 3400 kg; dimensions 4300x2090x2470 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Working pressure
2.2 MPa
Air delivery
21 m³/min
Engine
Xichai 310 HP
Weight
3400 kg
Overview
KSCY-310/22X is a KSCY Diesel Compressor Unit. Published specifications include discharge pressure 2.2 MPa; air delivery 21 m³/min; diesel engine Xichai310HP; outlet G2×1,G3/4x1; weight 3400 kg; dimensions 4300x2090x2470 mm. Use the model specification table to compare the selected equipment with project conditions and confirm the final configuration before order.
Key highlights
- ✓Automatic air-volume control system
- ✓Low-noise operation
- ✓Dedicated diesel engine for strong power
- ✓SKY patented profile for high energy efficiency
- ✓Rational design to help reduce operating costs
- ✓Open design for convenient maintenance
Genuine Kaishan equipment supplied through our authorized distribution channel, with configuration, export coordination, spare-parts and after-sales support.
Specifications
Request the current specification sheet for this model using the button above.
Performance & capacity
| Discharge pressure (MPa) | 2.2 |
| Air delivery (m³/min) | 21 |
Engine & drive
| Engine power | Xichai 310 HP |
Dimensions & weight
| Weight (kg) | 3400 |
| Dimensions (mm) | 4300x2090x2470 |
Other specifications
| Air outlet | G2×1,G3/4x1 |
Applications
- Mobile compressed-air supply
Recommended packages
What this unit powers
KSCY is itself the drilling-air source — match it to the rig's air demand: KG420B 10-17 m³/min, KG520 15-22 m³/min. One KSCY can feed several rigs on a fleet.
Pressure & flow matching rules
Pressure must cover the hammer rating (2.0-2.3 MPa covers most 3"-4" hammers) and flow the hammer consumption plus 10-15% margin.
Need a complete drilling package? Request a rig + compressor + tooling quote →
Frequently asked questions
What applications suit the KSCY-310/22X?
Mobile compressed-air supply.
What drilling equipment does the KSCY-310/22X power?
This compressor supplies drilling air to DTH rigs and hammers — match the discharge pressure to the hammer rating and the air delivery to the hammer consumption plus 10-15% margin. Tell us your rig model and hammer size and we will confirm the pairing.
Can the equipment be configured to my project?
Send your project details through the inquiry form and we will confirm the available configuration for the selected model before quotation.
